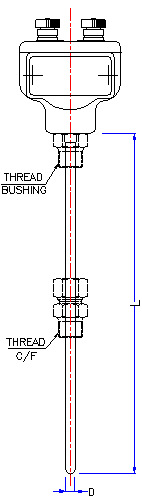

MODEL : MCS ( SHEATHED TYPE ) SCS ( PIPE TYPE )

제품선택

1.ELEMENT   ANSI K ANSI J ANSI T ANSI E OTHER OTHER :  BARE WIRE :  0.65 1.0 1.6 2.3 3.2 없음

2.PROTECTING TUBE OUTER DIAMETER (D)

    3.2 4.8 6.4 8.0 OTHER    OTHER :

3.PROTECTING TUBE MATELRIAL :    SUS 304 SUS 316 SUS310 INCONEL600 OTHER  OTHER :
4.THREAD (BUSHING TYPE) : PT3/8 NPT3/8 PT1/2 NPT1/2 OTHER 없음  OTHER :

5.THREAD (COMPRESSION FITTING TYPE) : PT3/8 NPT3/8 PT1/2 NPT1/2 OTHER 없음 OTHER :

6.HOT JUNCTION (FOR T/C) : 접지형 비 접지형 노출형

7.TERMINAL BLOCK : SINGLE

8.LENGTH : L :   mm
