MODEL : TE 24

제품선택

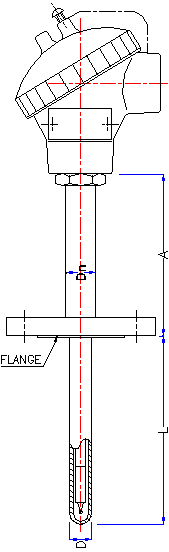

1.CONSTRUCTION   WEATHER PROOF EXPLOSION PROOF(ExdⅡCT6)

2.THRMINAL BLOCK MATERIAL : CERAMIC

3.HEAD : MATERIAL :ALUMINUM ALLOY
              SURFACE COLOR : METALIC SILVER
4.ELEMENT : ANSI K ANSI R ANSI T ANSI E ANSI S ANSI B OTHER  OTHER :    BARE WIRE :  0.3 0.4 0.5 0.65 1.0 1.6 2.3 3.2 없음

5.PROTECTING TUBE OUTER DIAMETER (D) : 8 10 15 17 20 21.7 27.3 OTHER  OTHER :   Φ

6.PROTECTING TUBE MATELRIAL : SUS 304 SUS 316 SUS 310 INCONEL600 HB SSA-S OTHER  OTHER :

7.NIPPL SIZE(Dn) AND MAT'L : : 12.7mm 17mm 21.7mm 27.2mm OTHER    OTHER :   SUS 304 SUS 316 SUS 310 INCONEL600

8.NIPPLE LENGTH (A) : 50 100 150 200 OTHER    OTHER:

9.FLANGE SIZE AND MATERIAL : SIZE :  MAT'L : 11.TERMINAL BLOCK : : SINGLE DOUBLE TRIPLE

12.LENGTH : L :   mm

13.CABLE GLAND:

성 명

E-mail

    상호

첨부파일

        기본 5Mbyte

전화번호

        - -

문의항목

        ## 항목을 선택하시기 바랍니다. ## ----------------------- 견적서 요청 카다록 요청 기술 및 서비스에 관한 문의 기타 문의 사항

문의사항

THIS  DRAWING AND SPECIFICATIONS HEREIN ARE THE PROPERTY  OF THE HANSAENG INS. CO,LTD. AND MUST NOT BELOANED OR OTHERWISE TRANSFERRED TO ANY THIRD
PARTY OR REPRDDUCED, COPIED, OR USED
IN CONNECTION WITH THE MANUFACTURE, PURCHASE, OR SALE OF ITEMS WITHOUT WRITTEN CONSENT OF HANSAENG INS CO,LTD

 THIRD ANGLE PROJECTION


APPROVED

DATE

TEMPERATURE SENSOR

UNLESS OTHERWISE SPECIFIE
DECICIMAL DIMENSIONS ±0.20
ANGLE DIMENSIONS  ±1'
DIMENSIONS ARE IN MILLI METER

 CHECKED

DWG, NO : HS-001

 DESIGNED

 DRAWN   S. Y. KIM

SCALE N/S

     WT

SHEET  DF
