MODEL : TE 22

제품선택

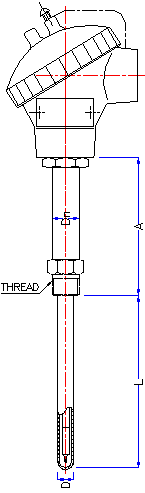

1.CONSTRUCTION   WEATHER PROOF EXPLOSION PROOF(ExdⅡCT6)

2.THRMINAL BLOCK MATERIAL : CERAMIC

3.HEAD : MATERIAL :ALUMINUM ALLOY
              SURFACE COLOR : METALIC SILVER
4.ELEMENT : ANSI K ANSI R ANSI T ANSI E ANSI S ANSI B OTHER  OTHER :    BARE WIRE :  0.3 0.4 0.5 0.65 1.0 1.6 2.3 3.2 없음

5.PROTECTING TUBE OUTER DIAMETER (D2) : 8 10 15 17 20 21.7 27.3 OTHER  OTHER :   Φ

6.PROTECTING TUBE MATELRIAL : SUS 304 SUS 316 SUS 310 INCONEL600 HB SSA-S OTHER  OTHER :

7.NIPPL SIZE(Dn) AND MAT'L : : 12.7mm 17mm 21.7mm 27.2mm OTHER    OTHER :   SUS 304 SUS 316 SUS 310 INCONEL600

8.THREAD (BUSHING TYPE) : PT3/8 NPT3/8 PT1/2 NPT1/2 OTHER 없음 OTHER:

9.TERMINAL BLOCK : : SINGLE DOUBLE TRIPLE

10.LENGTH : L :   mm     A :   mm

11.CABLE GLAND:
